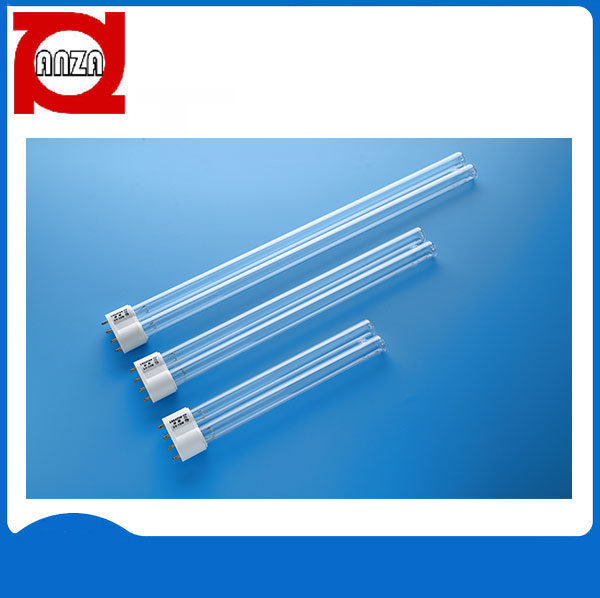

H Shape UV Lamps
Quantity
Inquiry

H Shape UV Lamps

  • Application areas:

Medical disinfection, air purification, deodorization and sterilization aquarium ultraviolet sterilizer.

Medical disinfection / air cleaning / deodorization / aquarium (5-13 watts)

Household appliance disinfection; air / surface disinfection (4-40 watts)

Refrigerators, microwave ovens and other appliances

Water treatment / disinfection pure water / ordinary water / medical water (10-75 watts)

Large-scale water treatment / high purity water / air cleaning (UV lamp)

Large-scale water treatment / high purity water / air cleaning (UV module)

Self-ballasted integrated ultraviolet lamp-indoor air disinfection

Nail gel curing / mosquito attracting / money certification / light curing

  • Product Parameters:

Power: 5W-13W

Life: ≥8000h

Voltage: 35v-90v

Model Tube Dia. (mm) Length (mm) Power (W) Voltage (V) Current (mA) UVC Output at 254nm (μW/cm²)/W Base
CUH5L 13 85 5 34 180 12 1.1 G23/2G7
CUH7L 13 115 7 47 175 20 1.5 G23/2G7
CUH9L 13 145 9 60 170 23 2.4 G23/2G7
CUH11L 13 214 11 89 160 33 3.6 G23/2G7
CUH13L 13 164 13 60 290 31 3.4 GX23/2GX7
CUH18L 17 217 18 60 370 60 5.8 2G11
CUH24L 17 317/297 24 87 350 90 7 2G11/G32Q
CUH35L 17 217 35 40 850 105 11 2G11
CUH36L 17 410/386 36 105 440 120 12 2G11/G32Q
CUH55L 17 530 55 103 540 170 18 2G11
CUH60L 17 410 60 118 670 170 18 2G11
CUH95L 17 530 95 100 950 305 33 2G11
