LSHM varnished cloth has higher heat resistance and can withstand heat up to 105 °C.
The insulation material is produced by the manufacturer, with a width of 900 to 1350 mm and a thickness of 0.06-0.20 mm. It has excellent insulating properties, flexibility, simple operation and tensile resistance.
LKM has the characteristics of high elasticity, strength, electrical stress resistance, good anti-friction performance, easy to use, small thickness and shrinkage.
The nominal thickness of the paint is 0.08 to 0.2 mm. When used at temperatures up to 105 °C, the shrinkage is less than 1%.
The average breakdown voltage on the 6 mm electrode before kinking was 6–9.5 kV, and after kinking it was 3.6–5.5 kV. LKM retains its characteristics when heated to 105 °C.

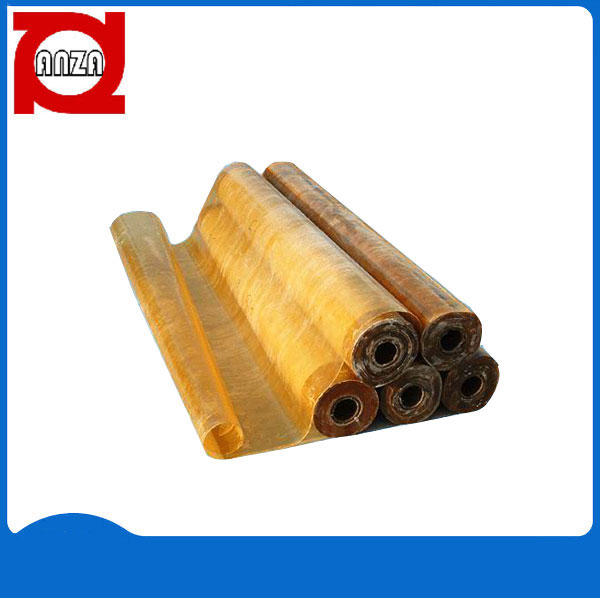

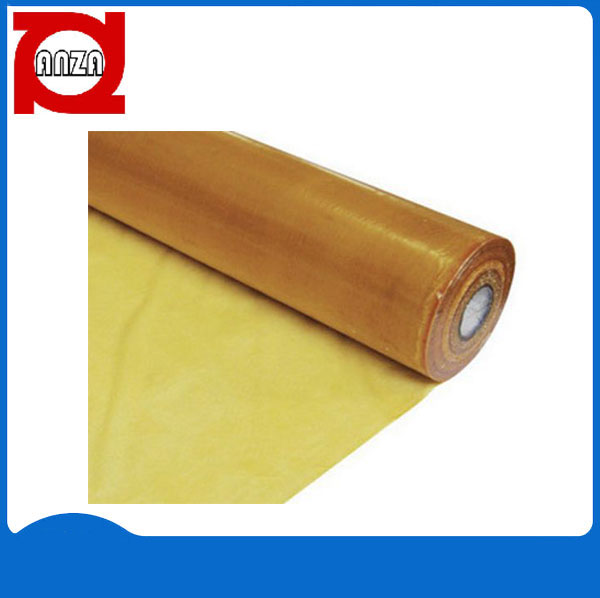

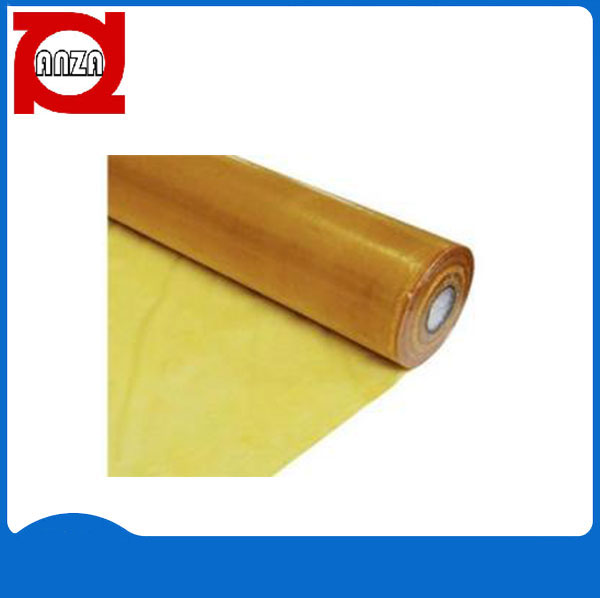

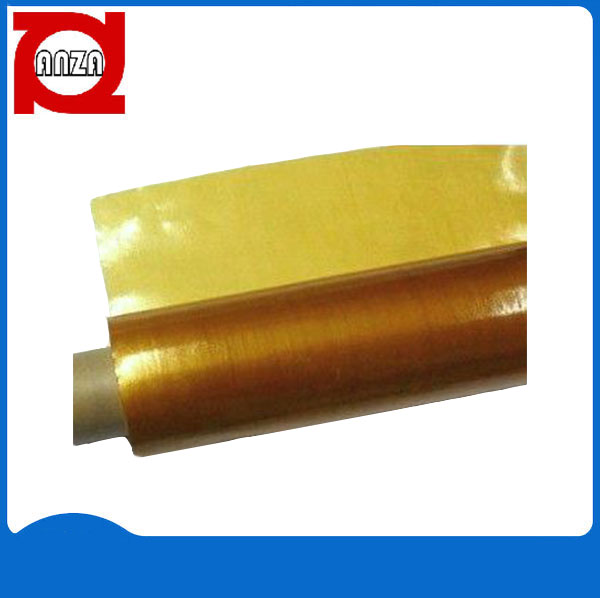

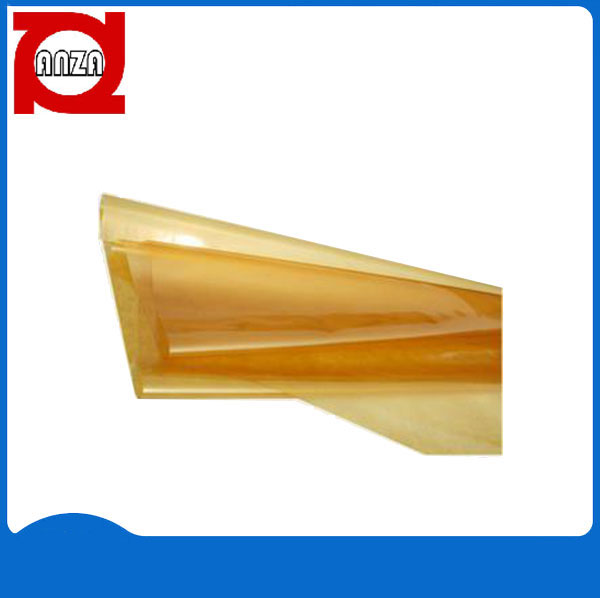

Glass fiber cloth electrically insulating LSM - a material based on fiberglass, impregnated with an oil binder. It is used as an insulating material with a maximum permissible operating temperature of up to + 120 °C.
Glass-fiber cloth LCM is produced in rolls, thickness 0.1 0.12 0.15; 0.17; 0.20 mm. The unit of measurement is m2. Color - yellow or beige translucent.
Fiberglass fabric-used as an insulator in motors with temperatures up to 155 °C (Class F).
It can be used in various electrical and electromechanical equipment to achieve reliable insulation. Glass paint fabrics are used as flexible insulation materials in motors, equipment, and electrical, moisture, and thermal insulation for pipes and pipelines.
It is delivered to the destination in roll form with a thickness of 0.10-0.20 mm.
LSK glass paint is made of glass fiber and impregnated with silicone varnish. It has the following characteristics:
Designed to operate at temperatures up to 1550С;
High electrical insulation performance;
Enhanced heat resistance;
Can be used to produce other composite materials;
It can be made of roll paper with a thickness of 0.05-0.2 mm and a width of 600-1100 mm;
