U Shape UV Lamps
Quantity
Inquiry

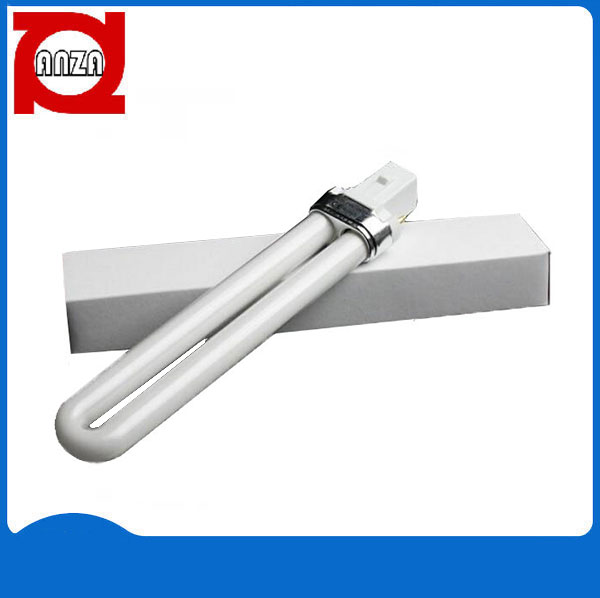

U Shape UV Lamps

  • Application Areas:

Medical disinfection, air purification, deodorization and sterilization aquarium ultraviolet sterilizer.

Medical disinfection / air cleaning / deodorization / aquarium (5-13 watts)

Household appliance disinfection; air / surface disinfection (4-40 watts)

Refrigerators, microwave ovens and other appliances

Water treatment / disinfection pure water / ordinary water / medical water (10-75 watts)

Large-scale water treatment / high purity water / air cleaning (UV lamp)

Large-scale water treatment / high purity water / air cleaning (UV module)

Self-ballasted integrated ultraviolet lamp-indoor air disinfection

Nail gel curing / mosquito attracting / money certification / light curing

  • Product Parameters:

Power: 1.2W-3.2W

Life: ≥12000h

Model Tube Dia.(mm) Length(mm) Power(W) Current(mA) Voltage at 50/60Hz(V) Voltage at high Freq (V) UVC Output at 254nm(μW/cm²)/W
GU76-10T5L 15 160 17 425 51 42 57 4.7
GU22-10T5L 15 186 17 425 51 42 57 4.7
GU22-390T5L 15 390 36 425 100 85 105 12
GU76-36T5L 15 412 41 425 120 98 135 14.3
GU22-36T5L 15 429 41 425 120 98 135 14.3
