Medical disinfection, air purification, deodorization and sterilization aquarium ultraviolet sterilizer.
Medical disinfection / air cleaning / deodorization / aquarium (5-13 watts)
Household appliance disinfection; air / surface disinfection (4-40 watts)
Refrigerators, microwave ovens and other appliances
Water treatment / disinfection pure water / ordinary water / medical water (10-75 watts)
Large-scale water treatment / high purity water / air cleaning (UV lamp)
Large-scale water treatment / high purity water / air cleaning (UV module)
Self-ballasted integrated ultraviolet lamp-indoor air disinfection
Nail gel curing / mosquito attracting / money certification / light curing

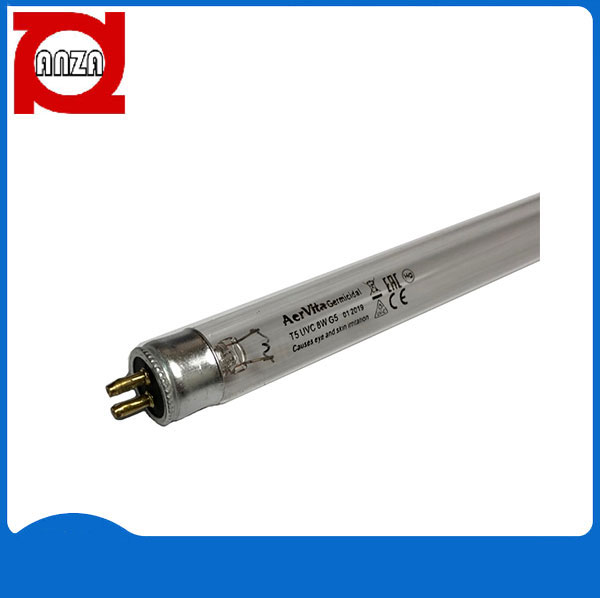

Type: G5
Power: 4W-8W
Service Life: 9000h
Model | Length (mm) | Power (W) | Current (mA) | Voltage at 50/60Hz (V) | Voltage at high Freq (V) | UVC Output (μW/cm²) / W | Base | |
T5 管径 | ||||||||
UVC4W | 135 | 4 | 170 | 28 | 23 | 9 | 0.9 | G5 |
UVC6W | 212 | 6 | 160 | 42 | 34 | 16 | 1.6 | G5 |
UVC8W | 288 | 8 | 150 | 56 | 45 | 21 | 2.1 | G5 |
UVC11W | 212 | 11 | 330 | 49 | 40 | 22 | 2.2 | G5 |
UVC16W | 288 | 16 | 350 | 54 | 44 | 36 | 3.6 | G5 |

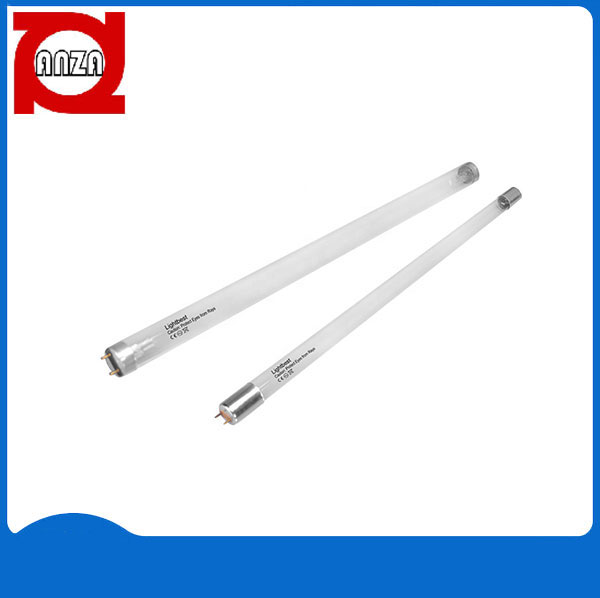

T8 管径 | ||||||||
UVC10W | 331 | 10 | 230 | 46 | 36 | 23 | 2.3 | G13 |
UVC15W | 437 | 15 | 340 | 51 | 44 | 47 | 4.7 | G13 |
UVC20W | 589 | 20 | 360 | 60 | 50 | 65 | 6.2 | G13 |
UVC25W | 437 | 25 | 600 | 43 | 41 | 70 | 7 | G13 |
UVC30W | 894 | 30 | 370 | 100 | 80 | 100 | 11.2 | G13 |
UVC36W | 1199 | 36 | 440 | 103 | 87 | 145 | 15.5 | G13 |
UVC55W | 894 | 55 | 780 | 87 | 70 | 160 | 17 | G13 |
UVC75W | 1199 | 75 | 850 | 110 | 85 | 220 | 26 | G13 |
