Anshan Anza Electronic Power Co.,Ltd.

• Product Application:

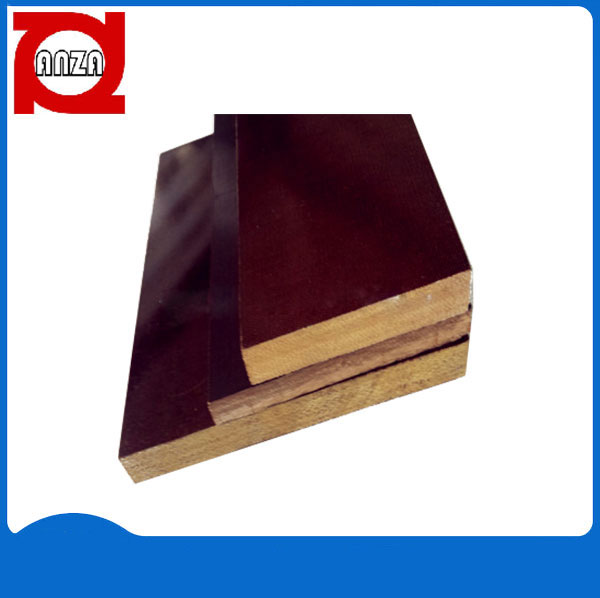

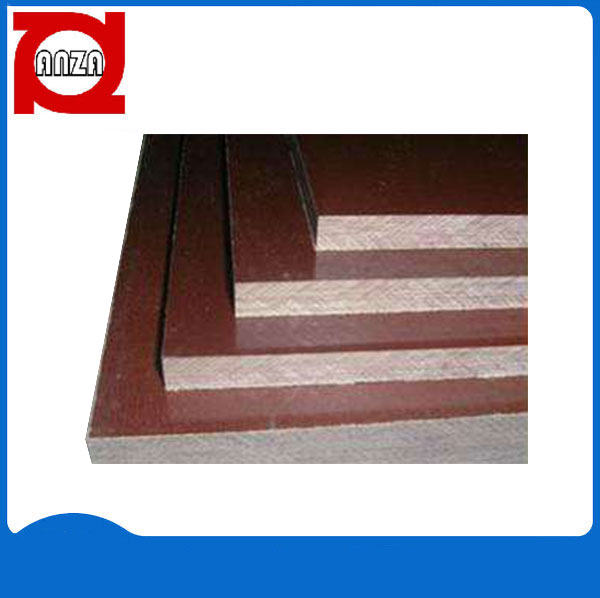

This material belongs to the group of structural materials and has the following characteristics:

Operating temperature range -65-1200С.

High dielectric constant.

Low resistance to acids and alkalis.

Resistant to mineral oil.

Can be machined and pasted.

The density of Getinax is 1.25 g/cm³.

Thickness: 0.5mm-100mm.

Size: 1020mm * 2020mm

• Product Parameters:

Item	Unit	Value
Density	g/cm³	1.30~1.42	1.30~1.45	1.30~1.45
Martens heat resistance	℃	125	125	125
Flexural strength≥	Mpa	110	90	70
Tensile strength≥	Mpa	70	-	-
Adhesion force≥	N	5390	4500	4500
Impact strangth, charpy≥	KJ/㎡	25	20	15
Voltagr endurance perpendicular to lamination in transformer oil at 90±2℃≥	KV/mm	-	-	-
Thickness:0.5~1mm		4	-	-
Thickness:1.1~2mm		3	-	-
Thickness:2.1~3mm		2	-	-
-		-	2.5	2.5
Area of the sheets	mm	1020x1220,980x1980,1020x2040
