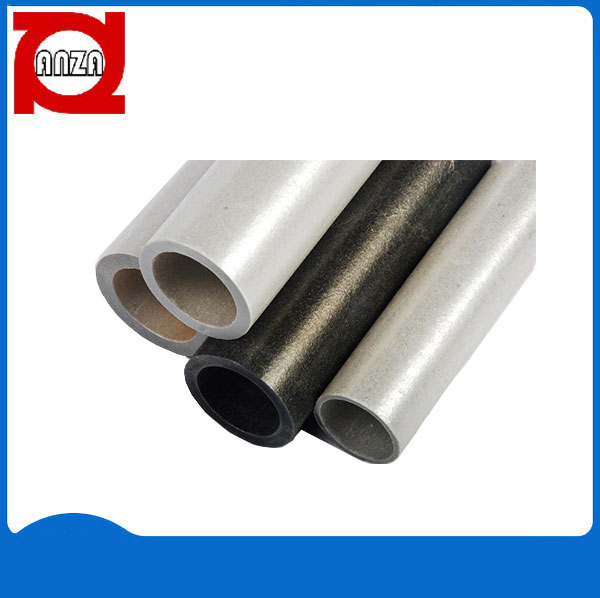

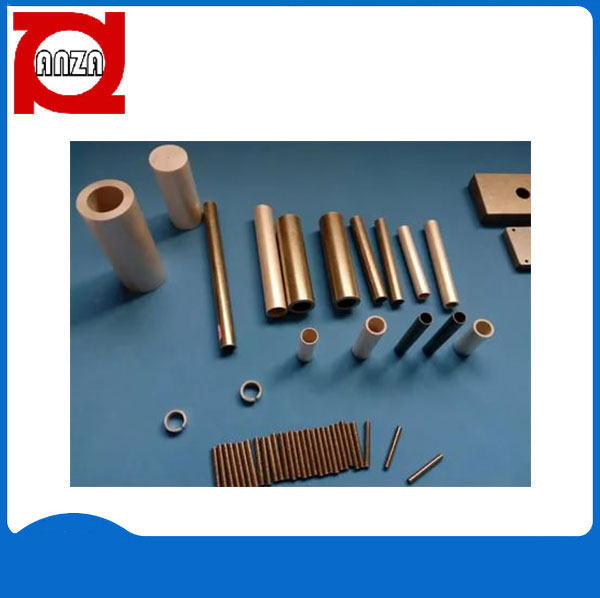

Mica Pipe

  • Product Application:

Tubes on the mica base are made of mica on an alumochromophosphate or alkali binder with a heat resistance up to 500 °C. They are used for electrical insulation of current conductors operating at high temperatures. The internal diameter is 5-70 mm, the outer diameter is up to 75 mm, the length is 25-850 mm, the wall thickness is 0.5-15 mm.

  • Product Parameters:
Type Muscovite plate Phlogopite plate Muscovite flexible plate Phlogopite flexible plate
Binder silicon resin
Mica content ≥90%
Binder content ≤10%
Thickness(mm) 0.10-2.0 0.10-2.0 0.10-2.0 0.10-2.0
Thickness tolerance(mm)  (Average) ±0.02-±0.05 ±0.02-±0.05 ±0.02-±0.25 ±0.02-±0.25
 (Individual) ±0.05-±0.08 ±0.05-±0.08 ±0.04-±0.06 ±0.04-±0.06
Density(g/cm²) 1.6-2.2 1.6-2.2 1.6-2.2 1.6-2.2
Heat loss at 500°C(%) ≤1.00 ≤0.60 ≤2.00 ≤2.00
Flexural strength(kgf/mm2) ≥18 ≥16
Dielectric strength(KV/mm) >20 >18 >15 >15
Insulation resistance(MΩ) 200-600 100-600
Long run work temperature 500°C 800°C 500°C 800°C
Standard size 1000 ×600  1000×1200  1000×2400
Standard reference GB5019-85, IEC371
