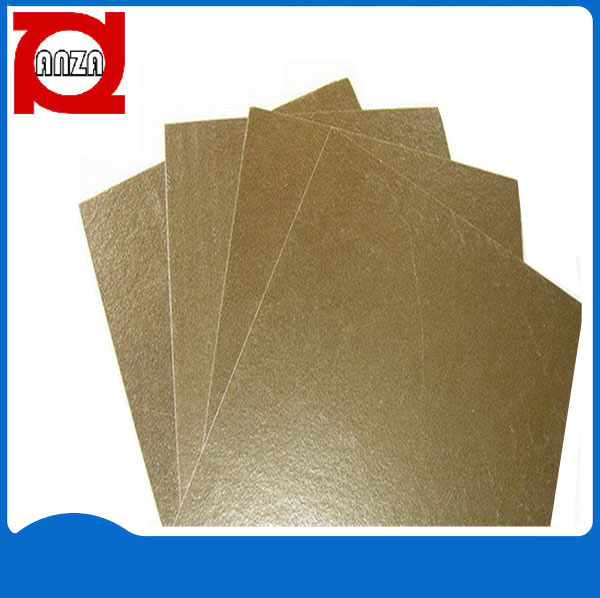

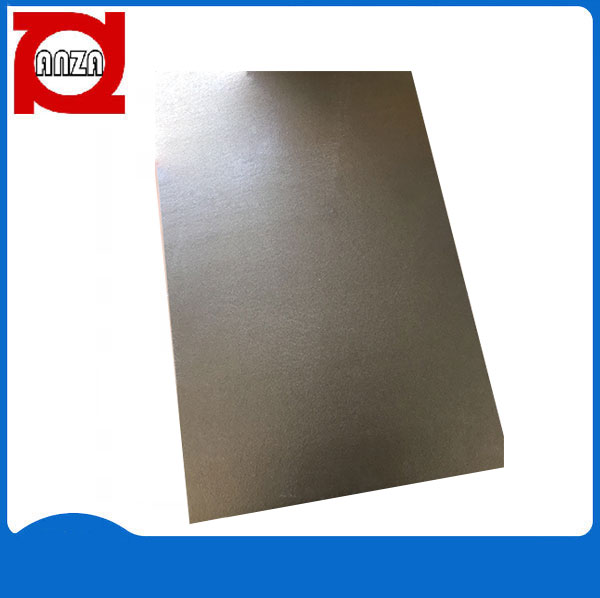

Mica Plate

  • Product Application:

The mica plate is designed for water meter columns of high pressure boilers as hydrothermal insulation.

Key parameters and dimensions:

Edged mica is a rectangular plate (plate).

The length of the plates should be no more than 220 mm, the width of the plates - not more than 35 mm.

The nominal dimensions of the plates are set by agreement between the consumer and the manufacturer.

The nominal thickness of the plates is 0.25 mm.

  • Product Parameters:
Item Unit 5660-S1 5660-S3
mica paper muscovite phlogopite
Mica content % ca.90 ca.90 IEC 371-2
Bond content % ca.10 ca.10 IEC 371-2
Density g/cm² ca.1.9 ca.1.9 IEC 371-2
Heat Resistant
continuous services °C  500 700
intermittent services °C  800 1000
Heat loss at 500°C  % < 1 < 1 IEC 371-2
Heat loss at 700°C  % < 2 < 2 IEC 371-2
Water absorption % < 1 < 1 GB/T5019
Dielectric strength KV/mm > 20 > 20 IEC 243
Flame Resistance 94V0 94V0 94V0
  • Packaging:
